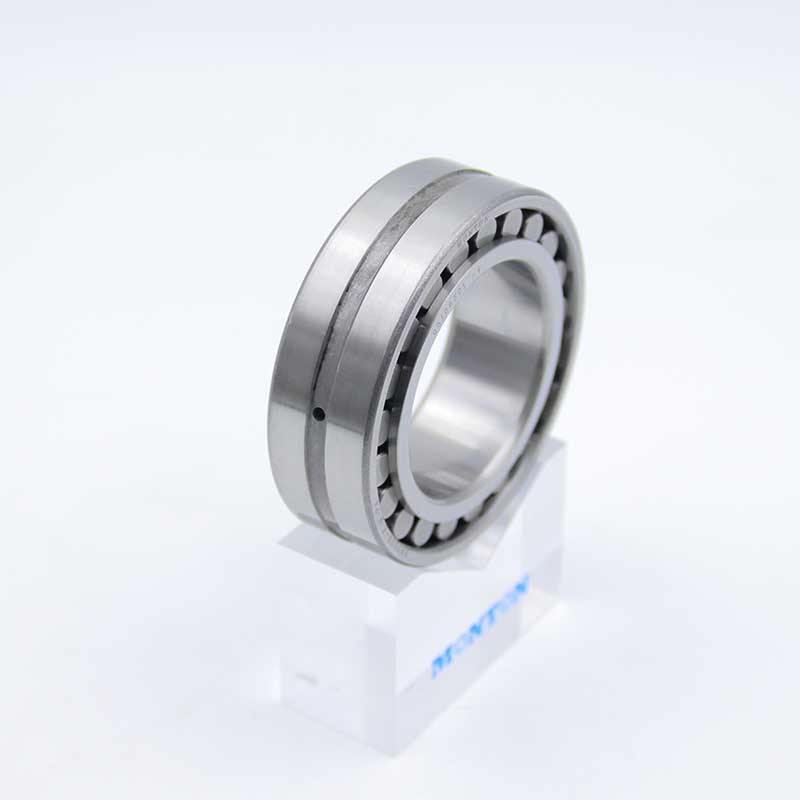

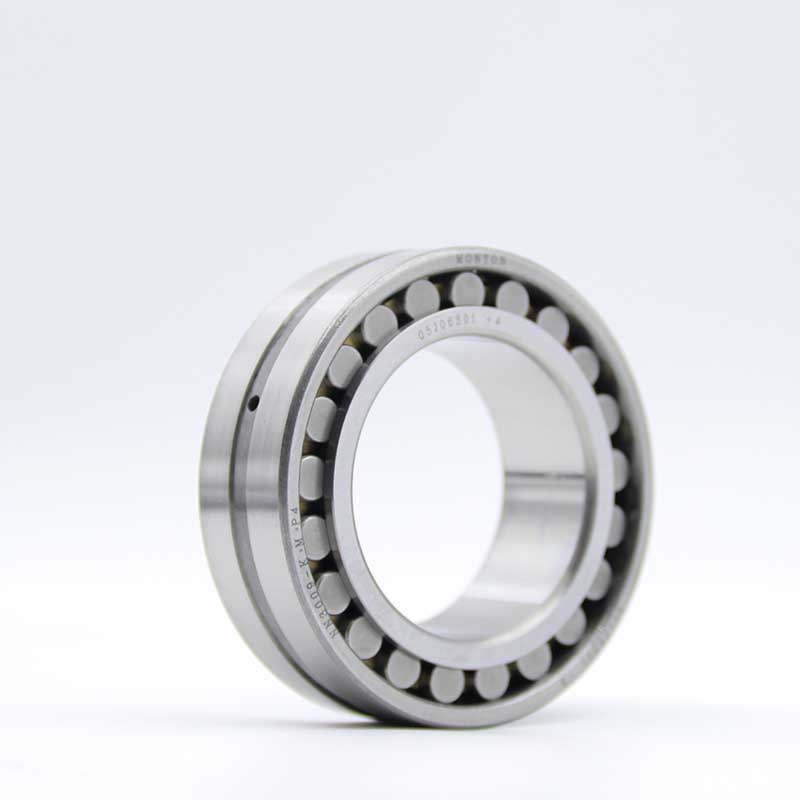

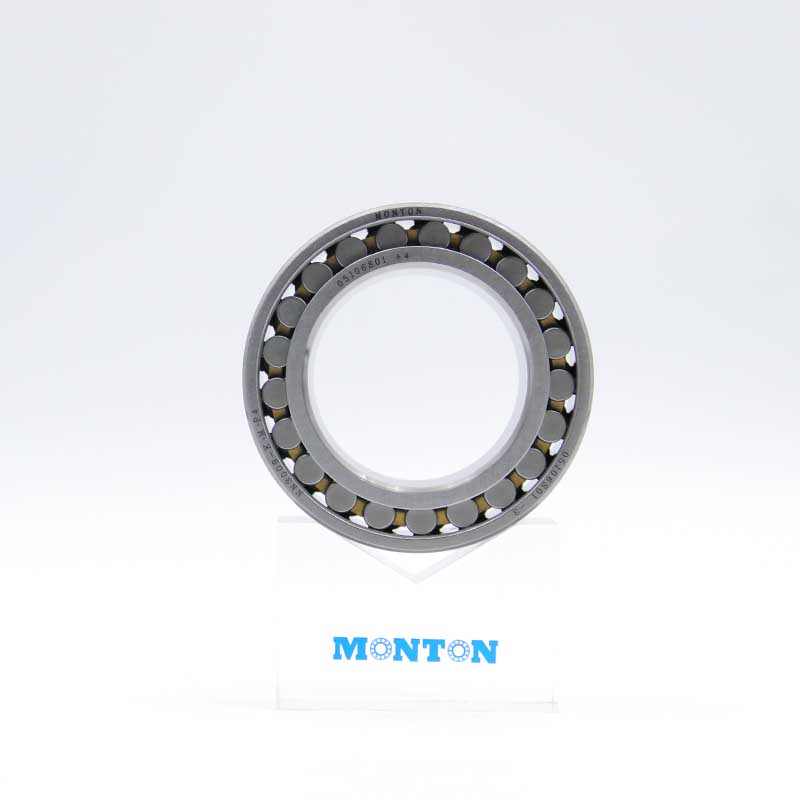

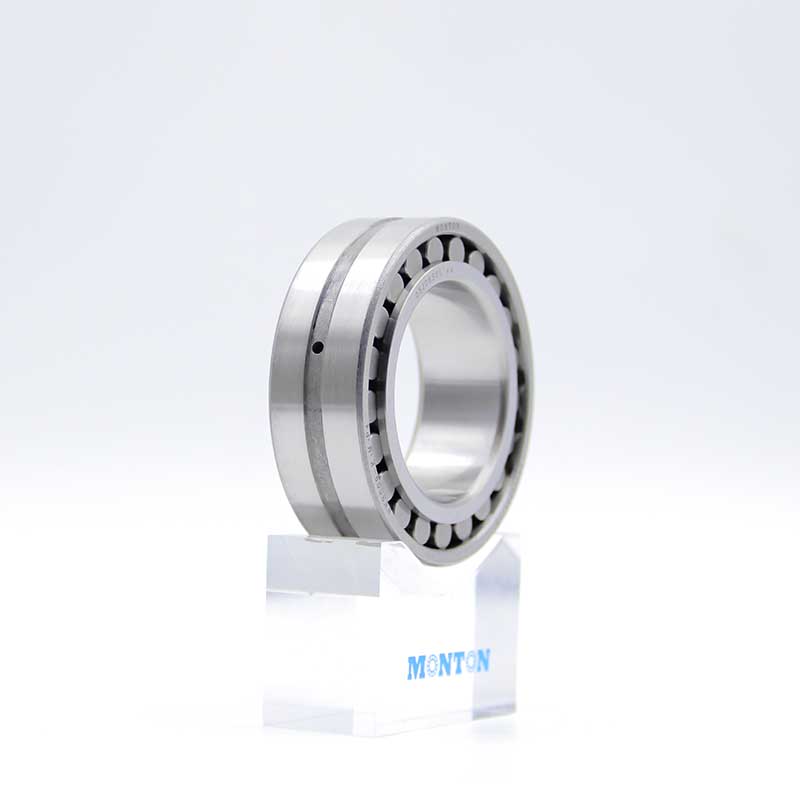

NN3009-K-M-P4 High Precision Cylindrical Roller Bearing CNC machine tools
| Name | High Precision Cylindrical Roller Bearing |
| Brand | MONTON |
| Series | NN30 |
| Model | NN3009-K-M-P4 |
| Bore diameter | 45mm |
| Outside diameter | 75mm |
| B(width) | 23mm |
| Bore: | 1:12 |
| Tolerance Class: | P4 |
| Ring Material | Gcr15 Bearing steel |
| Cage Material | Brass /Nylon |
| Basic dynamic load rating, axial Cr | 50.1 kN |
| Basic static load rating, axial Cor | 65.5 kN |
| Limiting speed for Grease lubrication | 12 000 r/min |
| Limiting speed for oil lubrication | 14 000 r/min |
| Fatigue load limit, radial Cur | 7.65 kN |
| Sealed | Open |
| Weight | 0.32KG |
| Quality standard | ISO9001: 2000/SGS |
| Package | single box |
| Original | Luoyang |
| Service | OEM |
| Delivery date | Accordingly |
| Application | Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc |
