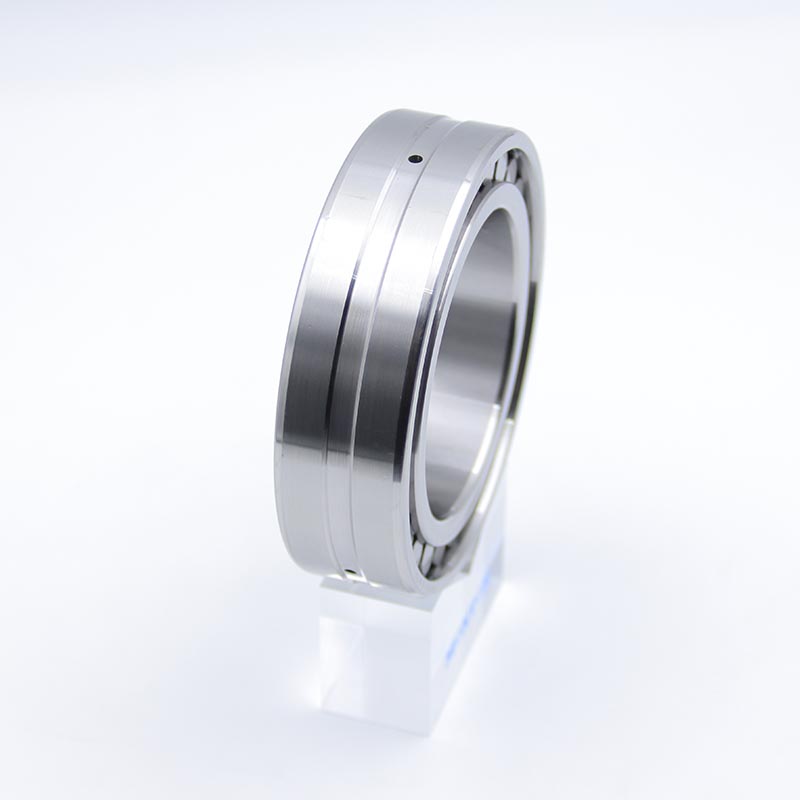

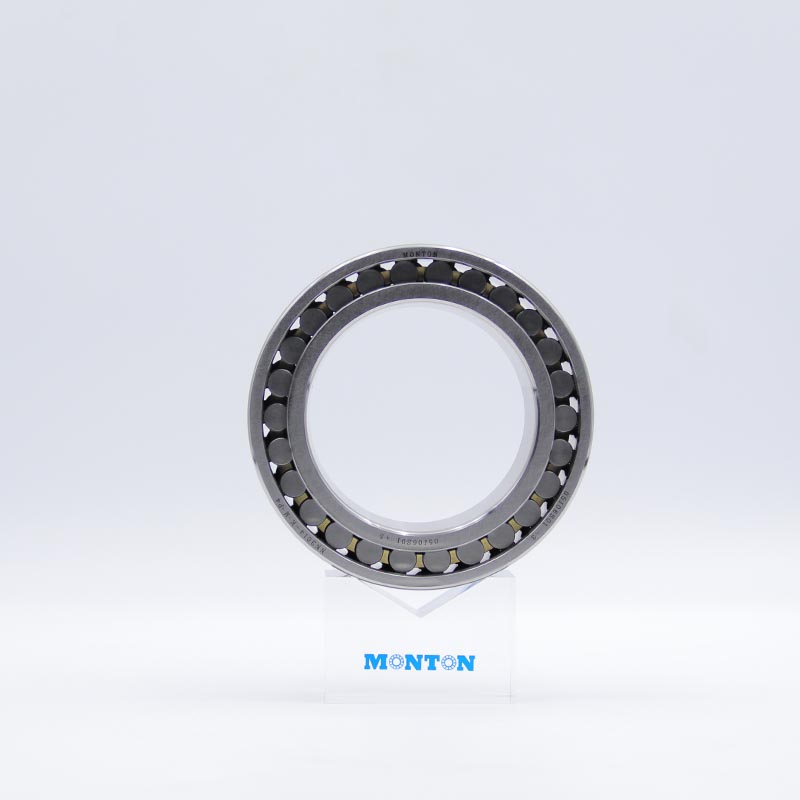

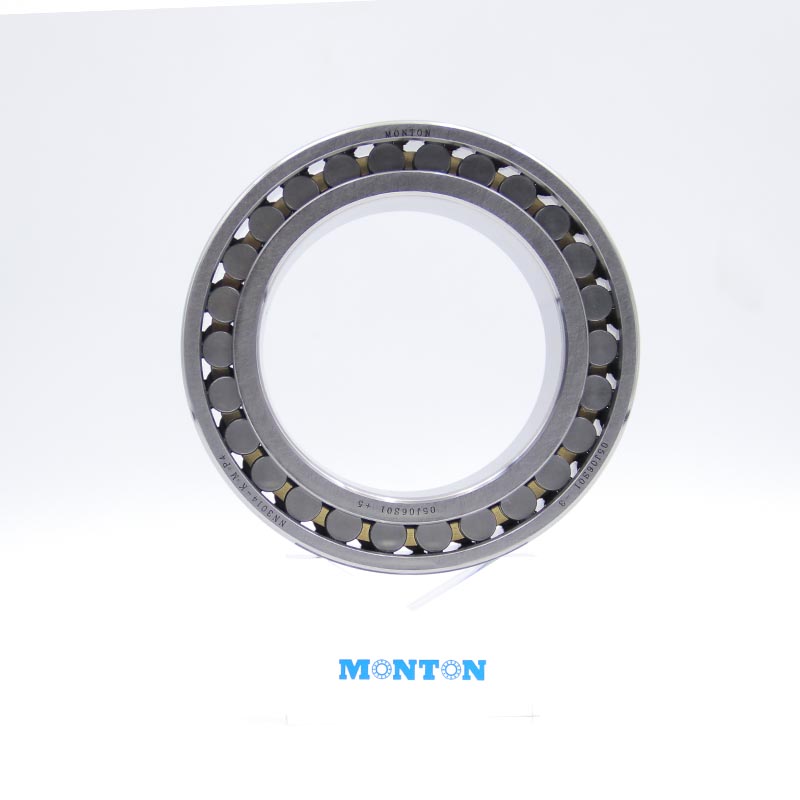

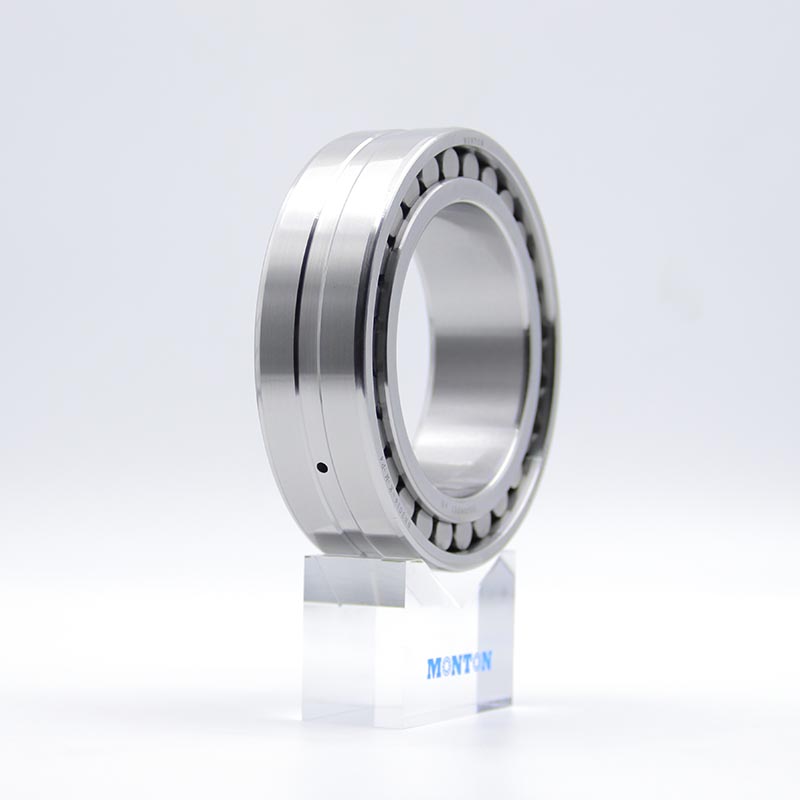

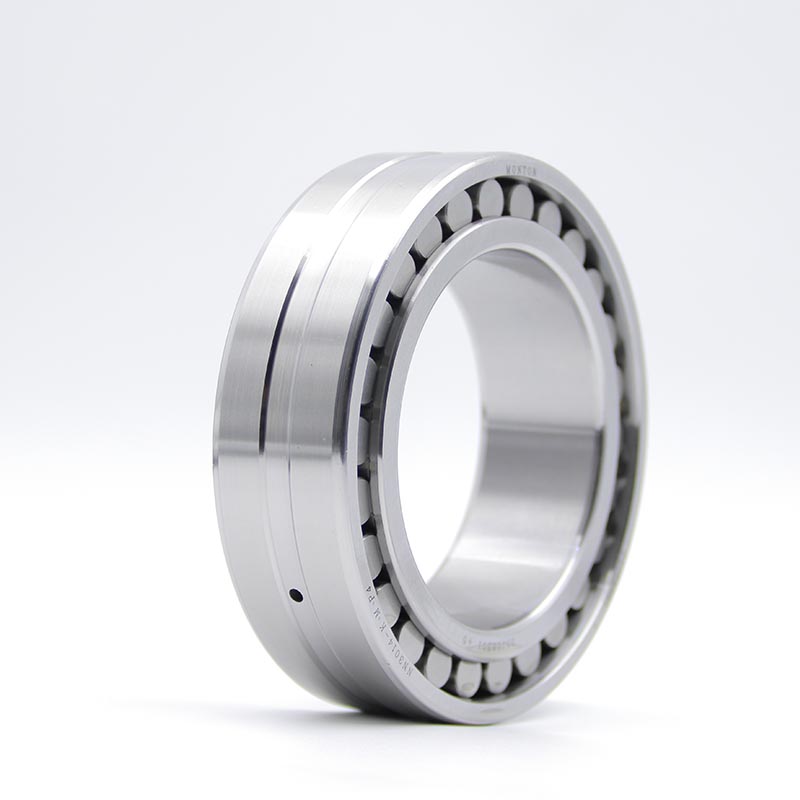

NN3014-K-M-P4 High Precision Cylindrical Roller Bearing Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc.
| Name | High Precision Cylindrical Roller Bearing |
| Brand | MONTON |
| Series | NN30 |
| Model | NN3014-K-M-P4 |
| Bore diameter | 70mm |
| Outside diameter | 110mm |
| B(width) | 30mm |
| Bore: | 1:12 |
| Tolerance Class: | P4 |
| Ring Material | Gcr15 Bearing steel |
| Cage Material | Brass /Nylon |
| Basic dynamic load rating, axial Cr | 113,000 N |
| Basic static load rating, axial Cor | 145,000 N |
| Limiting speed for Grease lubrication | 9,700 1/min |
| Limiting speed for oil lubrication | 11,400 1/min |
| Fatigue load limit, radial Cur | 21,200 N |
| Sealed | Open |
| Weight | 1.4KG |
| Quality standard | ISO9001: 2000/SGS |
| Package | single box |
| Original | Luoyang |
| Service | OEM |
| Delivery date | Accordingly |
| Application | Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc |
